The good news is that many delays can be reduced with better expectations upfront. Plastic injection molding usually follows a clear sequence, and understanding what happens at each stage makes it much easier to plan realistically.

How long does it take to go from part design to production?

There is no single timeline that fits every program, but for many standard molding projects, a common range from finalized design to first production run is roughly 8 to 16 weeks. Faster-turn programs can move more quickly, while complex parts, multi-cavity tools, tighter tolerances, or multiple revision rounds can extend the schedule. In practice, the biggest timing issues often come from underestimating front-end design work, tooling complexity, and trial-and-adjustment time.

What affects the overall timeline the most?

Several variables tend to have the biggest impact on schedule:

• part complexity and the number of design revisions before tool release
• tooling material selection, since aluminum tools are often faster to produce while hardened steel tools usually take longer
• geometry that requires side actions, lifters, collapsible cores, or other specialty features
• resin selection, validation requirements, and material availability
• cavity count and the overall complexity of the mold design
• sampling rounds needed after the first trial shots

These factors can affect not just the build schedule, but also how much iteration is needed before the process is ready for production.

What happens at each stage of the custom molding process?

Stage 1: Design review and DFM analysis

What happens

Before any steel is cut, your part design goes through a manufacturability review. This is where the molding team evaluates geometry, wall thickness, draft angles, gate locations, and potential problem areas.

What to expect

1. Submit your 3D CAD file and any functional requirements
2. Receive a Design for Manufacturability (DFM) report identifying recommended changes
3. Review and approve modifications before tooling begins

Why it matters

Skipping or rushing this stage is one of the most reliable ways to add weeks to your timeline. Changes that cost hours to fix in CAD can cost weeks and thousands of dollars once tooling has started. Getting this right upfront is also closely tied to how precision engineering decisions affect downstream costs.

Stage 2: Tooling design and build

What happens

Once the part design is approved, the mold itself is designed and machined. This is typically the longest single stage in the process.

Typical duration

Timelines vary by supplier and project type, but as a general guide:

• Aluminum or prototype tooling may be completed in a few weeks
• Hardened steel production tooling often takes several weeks longer

For many programs, that means fast-turn tools may land in the 2 to 4 week range, while more robust production tooling can take 6 weeks or more, especially when the mold is complex.

What to expect

1. Mold design is drafted and reviewed with your team
2. CNC machining, EDM, and other fabrication processes build the tool
3. Cooling channels, ejector systems, and gate locations are finalized

What can slow this down

• Late design changes after tool release
• Tight tolerances requiring additional machining passes
• Specialty features like side actions or collapsible cores

Stage 3: Tool trials and sampling (T1, T2)

What happens

The completed mold runs its first shots, called T1 sampling. Parts are measured, inspected, and compared against your specifications.

What to expect

1. T1 sample parts are produced and dimensionally inspected
2. Any deviations from spec are identified and corrected through tool adjustments
3. Additional sampling rounds, as needed, confirm that corrections were effective
4. First-article or equivalent approval inspection is often completed before production approval.

How long does this take

Plan for typically 2 to 4 weeks, depending on the extent of adjustments required. Programs with tighter tolerances or more complex geometry may need more time. Understanding how material and tooling choices affect part consistency at this stage can help you anticipate where adjustments are most likely to occur.

Stage 4: Production ramp-up

What happens

With the tool approved, production begins. Early runs focus on process stabilization before full-rate output.

What to expect

1. Process parameters (temperatures, pressures, cycle times) are locked in
2. Initial production lots are inspected at a higher frequency
3. Output ramps to full rate once consistency is confirmed

What most manufacturers overlook

Even at this stage, schedule risk exists. Resin availability, machine scheduling, and finishing or assembly steps all sit between your approved tool and parts in your hands. Building that buffer into your planning is something experienced partners flag early.

Working with a team that maps these variables before production starts is often what separates programs that hit their launch dates from those that don’t, and it’s also where the real cost advantages of custom tooling become most visible.

Who specializes in precise plastic injection mold manufacturing?

If you’ve ever been caught off guard by a tooling delay or a sampling round that stretched longer than expected, you already know how much timeline uncertainty costs. Not just in dollars, but in missed launch windows, strained customer relationships, and the kind of internal scrambling that nobody budgets for.

At Wunder-Mold, we work to take that uncertainty off the table early. Our team maps the full sequence before production starts, flags the real schedule drivers, and keeps you informed at every stage so nothing catches you off guard. We’ve spent decades helping manufacturers move from early design to production-ready parts efficiently and predictably. Reach out today!

The post The “Design-to-Part” Timeline: What to Expect appeared first on Wunder-Mold.

The reality is that plastic injection molding, done right, is one of the more cost-efficient manufacturing approaches available, especially when you’re thinking beyond the first order. This guide breaks down exactly where the savings come from, so you can make a smarter case for the investment. Keep reading!

How does custom plastic molding save money over time?

The short answer: precision reduces waste, and repeatability reduces cost. Here’s how that plays out in practice.

1. Less material waste per cycle

Custom molds are engineered to your exact part geometry. That means less excess material per shot, tighter tolerances, and fewer rejects coming off the line. Over thousands or millions of cycles, the difference between a well-designed custom tool and a generic alternative adds up fast. Scrap rates are one of the quietest budget killers in manufacturing, and a properly built mold addresses that from day one.

2. Reduced labor & post-processing costs

When parts come out of the mold correctly the first time, you’re not spending time or money on secondary finishing, trimming, or rework. A mold designed around your specific requirements produces parts that are ready to move to the next stage without intervention. That kind of consistency doesn’t just save on labor costs; it also shortens your overall production timeline in ways that compound over time.

3. Longer tool life means lower cost per part

A quality custom mold, built from the right material and maintained properly, can run anywhere from tens of thousands to over a million cycles before needing significant attention, depending on tooling material and part complexity. That means your tooling investment gets spread across an enormous number of parts, driving the per-unit cost down steadily as production scales. Cutting corners on tool quality to save money upfront often leads to premature wear and unplanned downtime, which costs far more in the long run.

Does custom tooling save money in high-volume production?

Yes, and the economics become more compelling the higher your volumes go.

Lower cost per unit at scale

This is where custom tooling earns its keep most clearly. Once your mold is built and qualified, the marginal cost of each additional part drops significantly. Raw material, cycle time, and machine hours are the primary variables, and all three can be optimized through thoughtful tool design. Multi-cavity molds, for example, allow multiple parts to be produced in a single cycle, multiplying output without multiplying cost. What looks like precision engineering on the surface is really a form of long-term cost control.

Consistency eliminates hidden costs

High-volume production exposes any weakness in your process. A mold that produces slightly inconsistent parts at low volumes becomes a serious problem at scale, generating defects, delays, and customer complaints that all carry a price tag. Custom tooling designed with tight repeatability in mind prevents those costs from appearing in the first place. It’s the kind of investment that doesn’t show up as a line item on a savings report, but shows up clearly in your margins over time.

The right partner compounds the savings

Tooling decisions don’t happen in isolation. The mold material, gate placement, cooling channel design, and resin selection all interact to determine how efficiently your process runs. Working with an experienced team that understands these relationships from the start reduces costly redesigns and delays down the road.

And for manufacturers weighing domestic versus overseas sourcing, the true cost comparison goes beyond the quote. Freight, port delays, and tariffs have a way of quietly closing the gap that looked so obvious on paper. Choosing the right manufacturing partner early in the process is often where the biggest savings are actually made, even if it doesn’t feel like a cost decision at the time.

Who to contact for reliable plastic injection molding?

At Wunder-Mold, we help manufacturers make smarter tooling decisions from the very beginning. With decades of hands-on experience in custom molding, our team knows how design choices, material selection, and process planning directly affect your bottom line.

We work closely with you to evaluate production goals, identify cost drivers early, and build a process that delivers consistent, high-quality parts at scale. If you’re ready to stop leaving money on the table and want a partner who understands the full picture, contact us today to talk through your project.

The post 3 Ways Custom Plastic Molding Actually Saves You Money appeared first on Wunder-Mold.

Moving from pilot runs to full production is where many manufacturing projects face their greatest risk. A design that performs well in limited quantities can behave differently once the same process repeats at higher volumes. Dimensional variation, tool wear, and thermal exposure become more visible as output increases.

For manufacturers relying on precision ceramic molding, early validation is what protects timelines, budgets, and long-term reliability. Scaling without structured testing can quietly introduce variation that was never apparent during development. Read on to understand what should be verified before committing to volume production. Keep reading to learn how early testing safeguards custom-engineered ceramic parts before scale-up.

Why is it important to test ceramic parts before mass production?

Testing before scaling matters because volume multiplies variation. During early runs, slight inconsistencies in shrink behavior or forming pressure may appear insignificant. As output increases, however, those same variations repeat cycle after cycle, gradually affecting dimensional stability and overall performance.

Shrinkage compounds over time. Tool wear begins to influence geometry more noticeably. Tolerance stacking becomes visible once components enter full assembly. What once looked like a stable process during a pilot phase can begin to drift subtly under sustained production conditions.

Before committing to volume, validation helps:

• Prevent large-scale scrap and rework
• Protect tooling investment from premature wear
• Confirm dimensional stability across multiple batches
• Reduce scheduling risk caused by unexpected variation

Scaling is not simply a matter of increasing quantity, it requires confirming that consistency holds under repetition.

What is the testing process in ceramic part manufacturing?

Validation follows a structured sequence designed to confirm stability at each stage of production. Rather than relying solely on final inspection, manufacturers evaluate forming, firing, and finishing conditions systematically.

Pilot runs

Pilot production is carried out using the same tooling, feedstock, and cycle parameters intended for full-scale output. These limited batches simulate real manufacturing conditions rather than producing isolated prototypes. The goal is to observe how the process behaves under repeatable, production-ready settings.

Dimensional verification

After firing, measurements are taken across multiple units to assess shrink consistency and tolerance retention. Evaluating several pieces rather than a single sample reveals whether dimensional trends remain stable or begin to shift. This step confirms that geometry aligns with design intent across the batch.

Mechanical validation

Structural performance must be confirmed under realistic service conditions. Strength testing, fracture resistance evaluation, and load behavior analysis ensure that performance observed during development remains consistent once the process is repeated.

Process confirmation

Thermal profiles, binder removal consistency, and environmental controls are reviewed carefully. Firing ramps, dwell times, and cooling rates must remain controlled to prevent internal stress or distortion. Confirming these parameters reduces the risk of gradual variation during extended production and provides clearer visibility into how tooling, processing, and finishing affect lead times. Together, these steps build confidence that the transition to volume will not introduce instability.

What should be tested before scaling to volume production?

Once the overall process framework is validated, attention shifts to specific performance categories. Testing should focus on variables most likely to shift as output increases.

Dimensional factors

Dimensional stability is foundational in keeping the production of ceramic parts repeatable. Even small changes in shrink behavior can influence critical tolerances.

Key checks include:

• Shrink variation across batches
• Stability of critical feature dimensions
• Flatness, concentricity, and alignment
• Warping or distortion after firing

Evaluating these elements across multiple runs confirms that geometry remains predictable.

Material performance

Whether you’re using zirconia or alumina for your ceramic parts, structural integrity must remain consistent under operational conditions.

Testing should examine:

• Strength under expected mechanical load
• Resistance to crack initiation and propagation
• Thermal expansion behavior
• Surface integrity following finishing operations

Performance validated in small trials must continue to represent full-scale output.

Production stability

Consistency across production variables determines whether volume output remains reliable.

Important areas to monitor include:

• Feedstock batch uniformity
• Tool wear tolerance over repeated cycles
• Inspection repeatability across shifts
• Stability of forming pressure and cycle timing

When these factors are controlled and verified, scaling becomes significantly less risky.

What are examples of manufacturing defects that can happen when scaling?

When validation is incomplete, scaling often reveals defects that were not visible during limited pilot runs. These issues typically emerge gradually as production cycles repeat and variation accumulates.

Several categories of defects tend to surface during volume increases:

• Cracking during firing: Internal stresses can intensify when heating and cooling cycles repeat at scale. Slight variations in density or temperature control may lead to microfractures that only become apparent after multiple runs.
• Warping and dimensional drift: Even small shifts in shrink behavior can produce gradual distortion. At higher volumes, these variations accumulate and begin affecting alignment and tolerance retention.
• Density inconsistencies: If material distribution varies between batches, structural strength may fluctuate. This can influence long-term durability under mechanical load.
• Surface irregularities: Higher throughput can expose finishing inconsistencies, resulting in texture variation or surface defects that were not visible during limited trials.
• Assembly misalignment: When dimensional deviation compounds across multiple components, tolerance stacking becomes more pronounced. Minor drift can create alignment challenges in integrated systems.

Who specializes in precision ceramic molding for industrial applications?

At Wunder-Mold, we understand that moving into high-volume output without thorough validation introduces unnecessary risk. Our team applies disciplined ceramic injection molding practices to evaluate forming conditions, firing control, dimensional stability, and long-term performance before production expands. By confirming process consistency early, we help manufacturers protect tooling investment, maintain repeatability, and avoid costly defects that only surface at scale.

If you’re preparing to increase output and want confidence that your process will hold under repetition, get in touch with us, and let’s validate your path to reliable volume production.

The post How to Test Ceramic Molded Parts Before Scaling to Volume Production appeared first on Wunder-Mold.

Scaling production is often where otherwise successful projects encounter unexpected friction. A component that performs consistently in limited pilot runs may respond differently once the same process repeats at higher volumes. Thermal exposure accumulates over time, tool wear progresses, and minor dimensional variation becomes more visible across larger batches.

For manufacturers working with custom molded ceramics, early validation is what protects repeatability, cost control, and scheduling stability. Without it, scaling can quietly introduce risks that were not apparent during development. Want to understand how repeatability protects precision in advanced ceramic molding processes? Read on!

What is repeatability in ceramic manufacturing?

Repeatability describes a process’s ability to deliver the same outcome under the same conditions across multiple production cycles. In practical terms, it means that when tooling, feedstock, thermal exposure, and process parameters remain controlled, the finished output remains consistent from run to run.

It goes beyond producing one dimensionally accurate unit. Instead, repeatability reflects long-term process stability, meaning the assurance that geometry, density, and performance characteristics will not drift as production continues.

In manufacturing environments, repeatability typically means:

• Consistent dimensions across batches
• Stable shrink behavior during firing
• Uniform mechanical performance
• Reliable surface quality

When repeatability is present, scaling production becomes predictable. Without it, even small variations in temperature control, raw material consistency, or forming pressure can compound over time, introducing deviation that affects downstream assembly and performance.

What is the difference between dimensional accuracy and repeatability?

Although closely related, dimensional accuracy and repeatability measure different aspects of manufacturing performance.

Dimensional accuracy refers to how closely a finished component matches its specified design. If a drawing calls for a certain diameter or wall thickness, accuracy measures the degree to which the finished geometry aligns with that requirement.

Repeatability, on the other hand, evaluates consistency over time. A production process may produce a highly accurate component during an initial trial. But if subsequent batches fluctuate outside tolerance, the process lacks repeatability, even if the first result was correct.

To put it simply:

• Accuracy is about hitting the target.
• Repeatability is about hitting it every time.

Both are essential. A process that is accurate but inconsistent creates uncertainty at scale. A process that is consistent but offset from specification requires recalibration. Mature manufacturing systems achieve both accuracy and repeatability, ensuring that validated performance translates into sustained production reliability.

What affects repeatability in ceramic injection molding?

Repeatability does not depend on a single variable. It results from disciplined control across every stage of production. When each step is stable, outcomes remain stable. When one variable drifts, variation often appears downstream.

Several factors influence long-term consistency.

Tool design stability

The forming tool establishes geometry and material flow. Over time, wear, alignment shifts, or inconsistent cavity conditions can introduce dimensional variation. Maintaining tooling integrity, including proper maintenance and monitoring, supports consistent output across extended runs. Design decisions also play a role. Balanced cavity layouts and optimized gating help ensure uniform material distribution, reducing the risk of uneven shrinkage during firing.

Feedstock consistency

Raw material uniformity is critical. Whether it’s alumina or zirconia you use for ceramic parts, variations in powder distribution or binder content can influence shrink behavior, density, and final geometry. Even subtle changes between batches may affect how the material responds during thermal exposure. Controlled sourcing, traceable batches, and consistent mixing procedures reduce these risks and support stable performance across production cycles.

Thermal processing control

The firing stage is where density and final geometry are established. Heating rates, dwell times, and cooling profiles must remain consistent to prevent internal stress or distortion. Because advanced oxides undergo measurable dimensional change during firing, predictable shrink behavior is essential. Deviations in temperature control or atmosphere conditions can directly impact dimensional stability.

Process parameter stability

Forming pressure, cycle timing, and environmental conditions influence the uniformity of the initial shape. Small deviations at this stage can amplify during firing, affecting final geometry and performance. Monitoring and documenting these variables helps identify trends before they become significant. When process parameters remain stable, repeatability improves.

Why is repeatability important when manufacturing?

Repeatability safeguards more than dimensional tolerance. It supports operational efficiency, cost control, and long-term product performance.

When output remains consistent, assembly fit improves, and tolerance stacking becomes easier to manage. Scrap rates decline because fewer units fall outside specification. Inspection time decreases as fewer anomalies require investigation.

Repeatability also contributes to:

• More predictable production scheduling
• Reduced rework and corrective actions
• Smoother regulatory qualification processes
• Greater confidence in scaling output

In industries where components operate under thermal, mechanical, or electrical stress, consistency directly influences reliability. Several performance factors must be evaluated before scaling ceramic parts to volume production, but validating a single batch is only meaningful if subsequent batches perform the same way. Repeatability ensures that what was tested is truly representative of what will be delivered over time.

Which company ensures repeatability of custom-molded ceramics?

Wunder-Mold has built its reputation on disciplined process control and manufacturing stability. With decades of experience in precision ceramic molding, we maintain strict oversight of feedstock consistency, tooling integrity, and thermal processing to ensure every production run performs like the last.

We understand that repeatability does more than protect dimensional accuracy—it directly supports predictable lead times in ceramic injection molding and strengthens confidence in long-term production planning. If consistent results and dependable timelines matter to your operation, reach out and let’s discuss your next project.

The post What “Repeatability” Looks Like in Ceramic Manufacturing appeared first on Wunder-Mold.

For ceramic parts manufacturers evaluating advanced oxide solutions, the choice usually quickly narrows to two proven candidates: alumina and zirconia. Each offers distinct strengths, but they solve different problems. Read on to understand how to decide whether alumina or zirconia injection molding fits your application best.

What is the difference between zirconia and alumina?

Although both materials belong to the same family of advanced oxides, their behavior under load, heat, and stress varies in important ways. Understanding those differences helps engineers make informed decisions when choosing between alumina and zirconia for their parts, based on real operating conditions rather than assumptions.

Mechanical strength and toughness

Alumina is known for its hardness and compressive strength. It performs exceptionally well in applications where surfaces experience abrasion, sliding contact, or repeated wear. However, it is relatively brittle, meaning it does not tolerate sudden impact or tensile stress as well as some alternatives.

Zirconia behaves differently. Its internal crystal structure allows it to absorb stress more effectively, giving it higher fracture toughness. This makes it better suited for designs where impact resistance or resistance to crack propagation matters. When a component must withstand mechanical shock or cyclic stress, zirconia often provides a wider safety margin.

Thermal behavior and stability

Alumina maintains structural integrity at very high temperatures and remains stable across wide thermal ranges. It is commonly used where heat exposure is continuous and predictable, such as furnace fixtures or electrical insulation near hot zones. Its thermal expansion remains low and consistent, which helps preserve dimensional accuracy.

Zirconia can also tolerate heat but expands more than alumina as temperature rises. This characteristic does not make it unsuitable for thermal environments, but it does require careful consideration when tight tolerances or mating interfaces are involved. In designs where thermal cycling is aggressive, expansion behavior becomes a deciding factor.

Wear resistance and surface durability

For applications involving friction, particulate exposure, or sliding contact, alumina’s hardness provides excellent resistance to surface degradation. Components retain shape and finish over long service periods, reducing the need for frequent replacement.

Zirconia offers good wear resistance as well, though its advantage lies more in toughness than pure hardness. In situations where surface durability must coexist with impact resistance, zirconia can outperform alumina by avoiding surface chipping or microcracking under load.

Electrical and insulating performance

Alumina excels in electrical insulation. Its dielectric properties remain stable even at elevated temperatures, making it ideal for housings, substrates, and isolation features in electronics and power systems. It reliably separates conductive elements without distortion or degradation.

Zirconia also provides insulating behavior, but it is typically selected for mechanical performance rather than electrical isolation. When insulation is the primary requirement, alumina is often the preferred option.

Density and weight considerations

Zirconia is denser than alumina. That added mass can be beneficial in applications requiring inertia or vibration damping, but it may be undesirable where weight reduction is a priority. Alumina offers a lighter alternative while still delivering strong mechanical and thermal performance.

Cost and production efficiency

From a production standpoint, alumina generally offers broader availability and lower material cost. It also processes efficiently for many geometries, which can help control budgets and simplify planning around lead times in ceramic manufacturing.

Zirconia tends to carry higher raw material and processing costs. However, that investment is often justified when its toughness improves long-term reliability and helps maintain consistent results across repeated ceramic part production runs, especially in demanding applications.

Matching material to application needs

Neither option is universally better. Alumina suits applications that prioritize hardness, insulation, thermal stability, and cost efficiency. Zirconia fits designs that demand toughness, impact resistance, or resistance to crack growth. The right choice depends on how the component will be loaded, heated, and handled throughout its life cycle. Teams often validate this choice through early trials, using pilot builds to test ceramic parts before moving into full-scale production.

Who are experienced ceramic parts manufacturers for high-performance applications?

At Wunder-Mold, we help manufacturers select the right material from the start, so performance expectations align with real operating conditions. With decades of experience producing advanced oxide components, our team understands how material behavior affects durability, tolerances, and long-term reliability.

We work closely with you to evaluate design requirements, service environments, and production goals before recommending the best solution. If you’re deciding between alumina and zirconia and want confidence in your choice, reach out to us today and let’s discuss your application.

The post How to Choose Between Alumina & Zirconia for Your Ceramic Parts appeared first on Wunder-Mold.

For many manufacturers, the biggest uncertainty isn’t whether a design will work, but how long it will take to deliver consistent, production-ready results. Understanding where time is actually spent makes planning more realistic and helps avoid surprises later. Read on to see how ceramic molding lead times break down and what factors influence them most.

What is the lead time for ceramic injection molding?

Total lead time depends on several interconnected stages rather than a single step. Tool preparation, material conversion, thermal processing, and final finishing all contribute to the schedule. While each project is different, knowing how these stages interact helps teams set expectations and make informed tradeoffs.

Tooling preparation & readiness

The first major contributor to lead time is tool development. This stage includes design review, cavity layout, gating strategy, and fabrication. Geometry complexity, feature density, and tolerance requirements all influence how long this phase takes.

Designs that align well with material flow and shrink behavior tend to move faster, while late changes or unclear specifications often extend timelines. Once complete, the tool establishes the foundation for repeatable ceramic part production, so accuracy at this stage directly affects downstream efficiency.

Material forming & conversion stages

After tooling is ready, production begins with shaping and conversion stages that gradually transform raw feedstock into a dense, functional component. Whether you choose alumina or zirconia for your molded ceramic parts, this phase includes forming, binder removal, and high-temperature firing.

Each step requires controlled conditions and carefully timed cycles. Thicker sections, complex geometries, or mixed wall thicknesses can increase cycle time, while uniform designs tend to move more efficiently through the process. Because these stages rely on thermal stability rather than speed, they often define the minimum achievable timeline.

Thermal processing & shrink control

Firing is not simply a heating step – it’s where final properties and dimensions emerge. Controlled heating and cooling rates reduce internal stress and limit distortion. Shrink behavior must remain predictable for dimensions to land within tolerance. Attempts to accelerate this stage usually introduce risk, so schedules must account for proper dwell times and cooling intervals. This phase rewards patience and precision rather than shortcuts.

Finishing & dimensional refinement

Some designs exit firing very close to final form, while others require additional refinement. Finishing operations may include surface correction, bore adjustment, or interface preparation. The number of features requiring refinement has a direct impact on total lead time. Designs that isolate tight tolerances to a few critical areas typically move faster than those that demand full-surface correction. Planning these requirements early helps prevent unexpected delays.

Inspection & verification steps

Measurement and verification occur throughout production, not only at the end. Early checks confirm dimensional trends, while later inspections validate final specifications. Projects that define inspection criteria clearly tend to move faster because acceptance decisions happen without ambiguity. When requirements change late, additional measurement cycles can add time that was not originally planned.

Factors that shorten or extend schedules

Several variables influence how quickly a project moves from start to finish:

• Geometry complexity and wall thickness variation
• Number of refined features required after firing
• Stability of design revisions during early stages
• Clarity of inspection and acceptance criteria

Projects that address these factors early often experience smoother timelines and fewer delays.

Planning lead time realistically

No two projects follow the same schedule, and many require performance tests for ceramic parts before scaling into full production, which impacts the total timeline. However, most delays trace back to uncertainty rather than process limitations. When teams understand how tooling, conversion, and finishing contribute to overall duration, they can plan development milestones more accurately.

Who delivers custom ceramic parts with predictable lead times?

At Wunder-Mold, we help manufacturers plan realistically and move efficiently from early design to full production. With decades of experience working with advanced oxide materials, our team understands how tooling preparation, thermal processing, and finishing steps shape overall project timelines. We work closely with you to identify potential schedule drivers early, reduce uncertainty, and ensure every stage supports consistent, production-ready results. If you’re looking to align performance requirements with achievable lead times, contact us today to discuss your project and get clarity from the start.

The post Ceramic Molding Lead Times Explained: Tooling vs. Processing vs. Finishing appeared first on Wunder-Mold.

That’s where smart automation comes in. By integrating automated systems in their production line, manufacturers can benefit from increased output and streamlined processes without sacrificing quality. In today’s article, we’ll explore how smart automation complements secondary processes and boosts overall productivity. Let’s dive in!

Which secondary processes benefit most from automation?

When it comes to injection molding, some processes can benefit from automation more than others. These processes typically include:

1. Trimming & deburring

When it comes to repetitive and time-consuming tasks, automation delivers the greatest impact. Automated systems can remove excess material or flash from molded components, which would take a human operator a great amount of time and effort. This is especially important in rapid part iteration, where speed and cost-efficiency are the main goals.

2. Multi-part assembly

Many molded components need to be assembled in conjunction with other parts or subcomponents. Automated assembly stations apply vision-guided robotics to move, insert, and attach parts reliably, while reducing the need for human intervention. The result is a consistent repeatability and reduced chance of errors.

3. Quality control

Smart automated systems in inspection can detect imperfections early. From inline vision systems and thermal imaging to laser-based measurements, these methods can measure critical dimensions and find faults that are otherwise difficult or time-consuming to identify.

4. Surface finishing

Processes like sanding, coating, and polishing can be quite labor-intensive. On top of the effort required, these tasks can expose workers to chemicals. With automated surface finishing, manufacturers can protect their employees from harm while simultaneously speeding up the entire process.

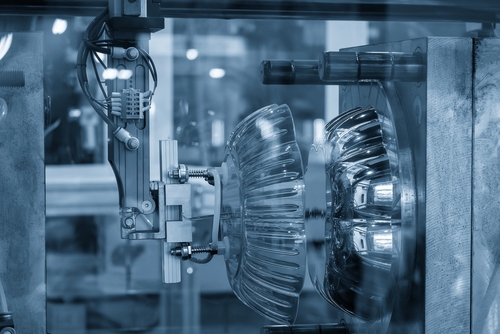

How to integrate automated finishing into an injection molding line?

To successfully integrate automation into the process, it’s important to plan and align the automation with the existing workflow carefully. Here’s a step-by-step approach.

1. Map your workflow

Identify repetitive tasks and bottlenecks in the process. Evaluate the ongoing workflow and identify whether trimming, assembly, or inspection is slowing down the production. This can determine which stage of the process could benefit the most from automated systems.

2. Select the right tools

Another critical step is to pick the proper equipment. Utilizing automation should boost the efficiency, whether it’s robotic arms or vision systems for in-line quality control. For the most effective result, it’s important to choose equipment that aligns with your operational demands.

3. Establish layout

Automation systems benefit from thoroughly planned layouts that make the whole process seamless. Modular design allows for operations to expand or scale as the need arises.

4. Implement data-driven monitoring

Automated production lines require strong quality control and monitoring systems to ensure the process stays aligned with quality standards. This includes establishing parameters for monitoring, such as component dimensions, material properties, and surface finish. Additionally, set automation systems to track these parameters continuously during production and log the data for future reference.

5. Support your workforce

Automated systems are becoming a vital part of production. However, human operators are still required to ensure the entire process functions seamlessly, especially when it comes to monitoring, maintenance, and improvements. By continuously training and supporting your employees to work with smart systems, you can ensure that your operations make the most out of automation.

Who specializes in high-quality plastic molding manufacturing?

With industry experience that spans over three decades, Wunder Mold is the go-to choice for reliable injection molding. Our team applies rigorous control checks and ensures each component meets the highest quality standards, while keeping pace with the latest rapid iteration techniques. Whether you’re located close to Peña Adobe Park or anywhere else in the region, reach out today, and let our expertise boost your operations!

The post Smart Automation in Secondary Processes appeared first on Wunder-Mold.

For custom injection molders, this means that advanced inspection methods, robotic handling, and automated cells are becoming a standard practice in their field. These methods can detect irregularities in seconds, before the product even reaches the packaging process. So, how do smart automations help in-line quality control? Read on and let’s find out!

Which inspection systems catch defects that human eyes miss?

While manual sampling can be effective, human quality control is not infallible. With the growth of product variation, the rise of rapid part iteration, and defect tolerance approaching zero, automated inspection systems are becoming the most reliable solution.

Best of all, inline inspection systems can catch defects while the process is underway, with minimal delay. These technologies include:

2D vision systems

For detecting surface defects, injection molding plants use 2D vision cameras. This method can accurately detect streaks, burn marks, and other surface irregularities with area-scanning for stationary parts, and line-scan cameras for moving components.

On top of that, vision inspection software can check for thresholding, morphology, color, and other properties. Combined with AI models, this process can ensure high accuracy and low cycle times.

3D vision systems

Compared to 2D cameras, 3D vision systems go beyond the surface level. Technologies such as laser scanning, stereoscopic imaging, and structured illumination can generate accurate and detailed maps of each component. This makes them ideal for detecting warps, incomplete fills, and dimensional deviations that are nearly impossible to detect visually.

Laser metrology

Laser metrology can provide extremely accurate dimensional validation, often at micron-level precision. This technique is used to confirm critical properties such as wall thickness, diameters, concentricity, and other crucial features.

Thermal analysis

Thermal inspection systems can detect irregularities by analyzing the temperature distribution across the molded part. Infrared cameras can help detect internal voids, uneven cooling, and weak weld lines that can be difficult to detect visually. If left unchecked, these anomalies can lead to performance failures later on.

Acoustic/vibration analysis

Some defects pass visual detection entirely, and the only way to identify them is with acoustic and vibration analysis. Irregular vibration patterns can indicate internal cracks, inconsistencies, or faulty assembly. This method is commonly used as an extra layer of assurance, especially if visual inspection is insufficient.

Hybrid systems

Hybrid systems combine multiple methods into a single process, facilitating a more accurate and thorough quality check. Instead of relying on one method, manufacturers often combine visual scanning, thermal imaging, laser-based measurements, and acoustic tests. This enables:

• Higher accuracy for complex or high-variation components
• Lowered need for manual inspection and verification.
• Digital inspection records for traceability and regulatory compliance.
• Complete defect inspection for a wide range of criteria.

How to design an automated cell for contamination-sensitive parts?

Smart automation plays a critical role in a variety of secondary processes beyond inspections. For contamination-sensitive components, automated systems allow for moving, inspecting, and processing parts without human contact and environmental exposure. In short, automated cells integrate smart in-line quality control methods to ensure consistent quality, full traceability, and regulatory compliance. This is done by:

• Utilizing automated part handling via robotics or pick-and-place systems
• Conducting inline inspection methods inside a sealed, controlled environment.
• Ensuring end-of-arm tools are smooth and easy to sanitize.
• Recording inspection results, process parameters, and other essential information.

Where to find one of the best custom injection molders?

At Wunder Mold, we combine 30+ years of expertise, the latest techniques, and state-of-the-art technology to design and produce molded components for multiple sectors. From following the latest rapid part iteration trends to ensuring consistent quality in each stage of the process, our team is qualified and equipped to develop the components your project needs in line with the highest industry standards. Whether you’re operating out of Sacramento Valley or anywhere else in the area, we deliver what we promise – fast turnaround, rigorously vetted products, and seamless delivery. Reach out today!

The post Smart Automation & In-line Quality appeared first on Wunder-Mold.

Today, we’ll explore digital twin simulation, mold flow analysis, and virtual testing – the Top 3 Emerging Trends that are redefining rapid prototyping and evolving the mold injection industry as a whole.

What are the emerging trends in rapid part iteration?

Over the past couple of years, the field of mold injection has welcomed numerous revolutionary improvements, from advanced automation for in-line quality control to smart solutions in secondary processes. However, our Top 3 are improving the core principles of rapid prototyping – a core process used to optimize part quality before full-scale production.

How can digital twins speed up part iteration?

Digital twin models are a virtual representation of the part, mold, and production environment, whose purpose is to enable engineers to explore design changes before any machining and tooling take place.

Through a combination of multiphysics modeling, AI-assisted optimization, and cloud integration, these advanced simulations help significantly shorten development time, reduce material waste and costs, and speed up decision-making.

They achieve this by providing instant, data-driven insights that reveal the design’s behavior and performance under real conditions, as well as any manufacturability constraints early in the design process. As a result, multiple rounds of physical sampling can be skipped completely, without any repercussions.

What is mold flow analysis in injection molding?

Another simulation technique, mold flow analysis is widely used by engineers to predict how molten plastic will behave inside a mold cavity. It simulates and evaluates a whole host of factors critical to part quality and manufacturability, including:

• Flow paths and fill patterns;
• Gate/runner performance;
• Cooling behavior and hotspot formation;
• Shrinkage, shear stress, and warpage.

This technique became essential because it can help “catch” an array of defects (e.g., weld lines, trapped air, sink marks, short shots, etc.) before actual, physical molds hit the production line, thereby helping dramatically reduce scrap, remanufacturing, and overall production costs.

What is virtual testing in injection molding?

Virtual testing is yet another technique that eliminates the need for a physical prototype, while allowing manufacturers to validate a new part’s structural, thermal, and usability characteristics. This method uses a set of digital tools to conduct a series of tests, such as:

• Finite Element Analysis (FEA) (evaluates strength and deflection);
• Thermal simulation (evaluates cooling and heat distortion);
• Fatigue & lifecycle simulation (evaluates durability);
• Drop or impact tests (for consumer applications).

So, instead of wasting time and resources on multiple prototype cycles, engineers can now simulate hundreds of scenarios, narrowing down the optimal design before any cutting takes place.

What are the benefits of digital twins, mold flow analysis, and virtual testing?

By utilizing these three advanced tools, mold injection manufacturers stand to gain massive advantages, including:

• Reduced material waste;
• Minimal need for costly reworks;
• Faster design cycles;
• More predictable production;
• Improved product quality;
• Lower upfront tooling costs.

In other words: digital twins, mold flow analysis, and virtual testing enable companies to move from concept to functional product faster and with more confidence – exactly what is needed in today’s hyper-competitive market.

Who are the veritable leaders for injection mold manufacturing in California?

Wunder Mold combines three decades of experience with the latest methods and cutting-edge technologies to deliver high-quality, reliable molded parts for a diverse range of industries. You can count on our team to work lockstep with you to understand the unique requirements of your project and develop the exact parts you need to enhance your operations. We cater to customers in all parts of California from our HQ in Solano County, ensuring swift project completion and delivery. Reach out to us today, and let’s get started on your project!

The post 3 Emerging Trends in Rapid Part Iteration appeared first on Wunder-Mold.

Enter rapid injection molding – a cornerstone of modern iterative product development that allows manufacturers to push their products with speed and confidence. Today, we’ll explore the key principles of this method and the benefits of its key component: rapid part iteration.

What is rapid injection molding?

Rapid injection molding is a streamlined manufacturing method that uses simplified or quickly produced molds, typically made from aluminum or soft steel. Compared to traditional (hardened steel) tooling, this approach is much faster and more cost-effective, enabling manufacturers to create plastic parts in a matter of days, instead of weeks or even months

This process follows all the same molding principles: molten plastic is injected into a mold cavity, cooled, and ejected. The difference lies in the tooling strategy which, in the case of rapid injection molding, is optimized for speed, cost-efficacy, and early-stage iterations.

What are the key principles of rapid injection molding?

The method is built on several core engineering and workflow principles, which we can roughly separate into two categories:

1. Simplified tools, designed to increase manufacturing speed by:
   1. Reducing machining complexity (e.g., fewer slides, simpler parting lines);
   2. Expediting CNC milling of aluminum molds;
   3. Enabling quicker tool adjustment.
2. Softer, reusable materials, which allow manufacturers to cut costs and lead times:
   1. Lower hardness materials that shorten machining time;
   2. Pre-hardened mold bases that eliminate the need for additional heat treatment;
   3. Modular inserts that allow for the reuse of mold frames.

Where does rapid part iteration fit in?

Rapid injection molding only works well if there’s a reliable way to quickly redesign and retest the parts. This is exactly what rapid part iteration (a.k.a. “rapid prototyping”) enables – to fabricate a part, test it, and refine the design, reaching the optimal final version in the shortest amount of time possible.

How does rapid part iteration work?

Rapid prototyping follows a simple yet effective cyclical workflow:

1. Designing a prototype: Engineers create an initial CAD design.
2. Produce a quick-run mold: A simplified/modular mold is machined in days.
3. Mold the 1st batch: A small quantity of product is manufactured for evaluation.
4. Evaluate performance: Functionality, dimensions, material behavior, and assembly fit are all extensively tested.
5. Revise the design: Prototype is refined using test data.
6. Rinse & repeat: The process is repeated until the final product meets the set standards.

What are the benefits of rapid part iteration?

The iterative method delivers numerous benefits, including:

• Shortening development cycles: Prototyping that once took months now takes only a few weeks or even days.
• Maximizing cost-effectiveness: Simplified tooling and reusable materials significantly reduce the upfront investment.
• Improving product reliability: Functional material testing ensures parts behave as expected under real conditions, while early flaw detection allows swift adjustments with minimal material waste.
• Reducing risks: More design cycles (in shorter periods of time) mean fewer production failures.

Which injection mold manufacturing companies employ the iterative principles to improve the quality & reliability of their products?

Wunder Mold continuously raises the bar in the injection molding industry by staying on top of emerging trends in rapid part iteration. Our team leverages smart in-line QC systems to catch defects a human eye can miss, as well as advanced automation in secondary processes to ensure every part meets the industry’s highest standards. Connect with our HQ in Vacaville, CA, and discover how our methods and expertise can help your business thrive!

The post Rapid Part Iteration in Injection Molding: Key Principles & Benefits appeared first on Wunder-Mold.
